Attributes
| Weight |
0.6 lb
|
|---|---|
| Break Quantity |
6
|
| Mandatory Package/Box Quantity |
6
|
| Material |
Brass
Steel
|
| Maximum OD |
Coupler - 0.93" (Coupler - 23.5mm, Female Plug - 20.1mm, Male Plug - 16.5mm)
Female Plug - 0.79" (Coupler - 23.5mm, Female Plug - 20.1mm, Male Plug - 16.5mm)
Male Plug - 0.65" (Coupler - 23.5mm, Female Plug - 20.1mm, Male Plug - 16.5mm)
|
| Thread |
NPTF
|
| Body Size |
|
| Temperature Range |
-40°F to 250°F (-40°C to 121°C)
|
| Thread Size |
1/4"
|
| Length |
Coupler - 2.07" (Coupler - 52.6mm, Female Plug - 42.2mm, Male Plug - 42.9mm)
Female Plug - 1.66" (Coupler - 52.6mm, Female Plug - 42.2mm, Male Plug - 42.9mm)
Male Plug - 1.69" (Coupler - 52.6mm, Female Plug - 42.2mm, Male Plug - 42.9mm)
|
| Hex |
Coupler - 3/4"
Female Plug - 11/16"
Male Plug - 9/16"
|
Details
Compatibility & Interchange Data
- Foster 3, 4, 5 and 6 Series
- Parker 30 - Series Automatic Interchange & Parker 20-Series Manual Interchange
- Hansen 3000, 4000, 5000 and 6000 & Hansen 1000, 400 and 500
Construction
- Machined components are manufactured using solid bar stock.
- Stainless steel balls, retaining rings and springs maximize corrosion resistance and extend service life.
- Nitrile (Nitrile Rubber) seals are standard
- Steel componentry is plated using ROHS Compliant Trivalent Chrome.
- Steel sleeve and steel tubular valve
Description
(Case Qty 6 Required)
How It Works
- To disconnect, begin by holding the hose on the nipple side with three of your fingers, leaving your thumb and index finger free.
- Grab the sleeve with your thumb and index finger and begin to pull the sleeve towards the palm of your hand.
- After pulling the sleeve, the nipple will move out of the coupler slightly.
- Continue to hold the hose and coupler sleeve until all air is fully exhausted.
- After the line is fully exhausted, you are able to safely separate the nipple from the coupler.
Includes
2FF2-B, D2F2, D2M2 (3)
Safety Notes
It is important to be safe when installing quick disconnect couplings into a pneumatic circuit. Never install a pneumatic coupling directly into an air tool, use a piece of hose that is at least 18" long, between the tool and the coupling, to prevent damage to the coupling. To protect the operator, safety devices, such as a safety check valve and safety cable should be installed in case there is a hose or coupling failure.
Specifications
- Coupler - Rated pressure for connected Brass Coupler & Brass Plug: 300 PSI (20 bar) Maximum Working and 8,500 PSI (586 bar) Burst
- Coupler - Rated pressure for connected Brass Coupler & Steel Plug: 500 PSI (35 bar) Maximum Working and 9,000 PSI (620 bar) Burst
- Coupler - Rated pressure when connected with Brass F-Series Manual Couplers: 500 PSI (35 bar) Maximum Working and 9,000 PSI (620 bar) Burst
- Coupler and Male Plug - Rated pressure when connected with Steel F-Series Manual Couplers: 500 PSI (35 bar) Maximum Working and 6,500 PSI (448 bar) Burst
- Male Plug - Rated pressure when connected with Brass F-Series Manual Couplers: 500 PSI (35 bar) Maximum Working and 11,500 PSI (790 bar) Burst
- Female/Male Plug - Rated pressure when connected with Brass D-Series Automatic Couplers: 500 PSI (35 bar) Maximum Working and 16,000 PSI (1,100 bar) Burst
WARNING: This product contains lead, a chemical known to the State of California to cause cancer and birth defects or other reproductive harm.
Resources
Product Video
How to Connect Dixon's DF-Series Couplers
Learning Video
Dixon Quick Coupling
Product Literature
Dixon Retail Store

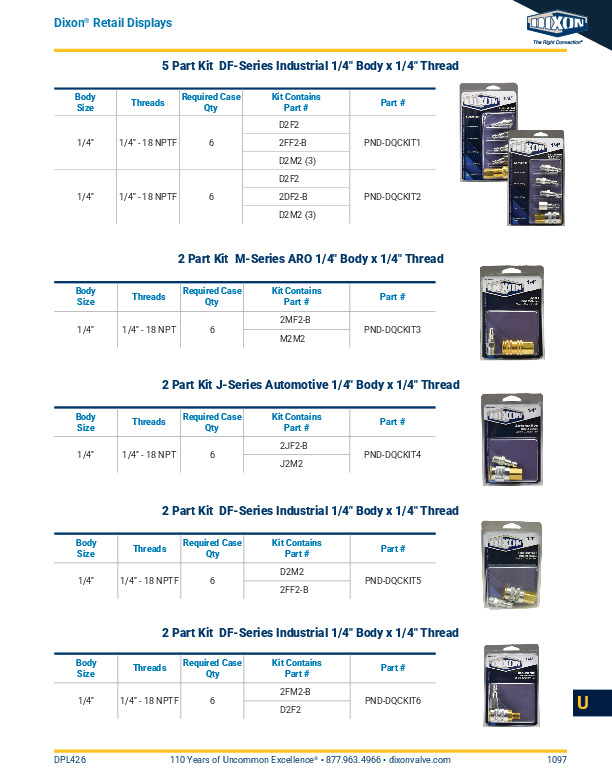

Catalog Page
